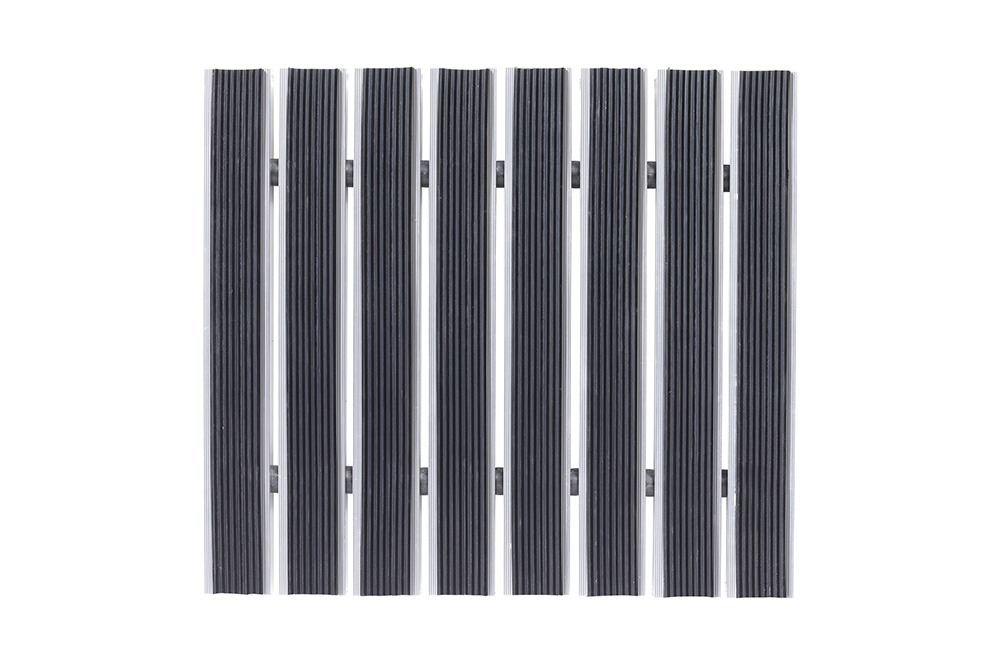

ABI Alucable with rubber

  • Suitable for zone 1 (outside)
  • Total mat height: 20 mm - with rubber insert: 25 mm
  • Extra thick and strong profile of 25 mm
  • Suitable for rolling loads
  • Passive scraping effect
  • Anti slip

Product code: AKX-04



The ABI Alucable XXL can withstand extreme loads. With a thickness of 2,5 mm, the aluminium profile is capable of withstanding loads of up to 3,800 kg per 100 cm2! Ideal for entrances that receive a lot of rolling traffic such as forklift trucks, pump trucks, or stacker trucks.



Rubber is very suitable for the removal of coarse dirt in an area where rolling traffic - such as wheelchairs, pallet trucks and transport trolleys - passes. The surface is ideal for rolling loads due to its compact form and the ribbed structure of the rubber material has a scraping effect.

SPECIFICATIONS



Aluminium height

20 mm

Aluminium width

33 mm

Aluminium thickness

2,5 mm

Profile distance

4 mm

Profile connection

Stainless steel cable 2mm with distance cups

Profile bottom

Equipped with sound-absorbing anti-slip layer

Standard aluminium

Brute

Optional

Extra aluminium scraping profile

Anodization in 24 colours More information.

Loadability

3.800 kg per 100 cm2

Fire load classification

Dfl-s1

Anti slip classification

R10

Weight

ca. 21 kg / m2

Total mat height

25 mm



INSERT OPTIONS


Rubber

EPDM rubber with ribbed structure

Colour: black

OPTIONAL ACCESSORIES

ANODIZATION

WELL FRAMES

T PROFILES
