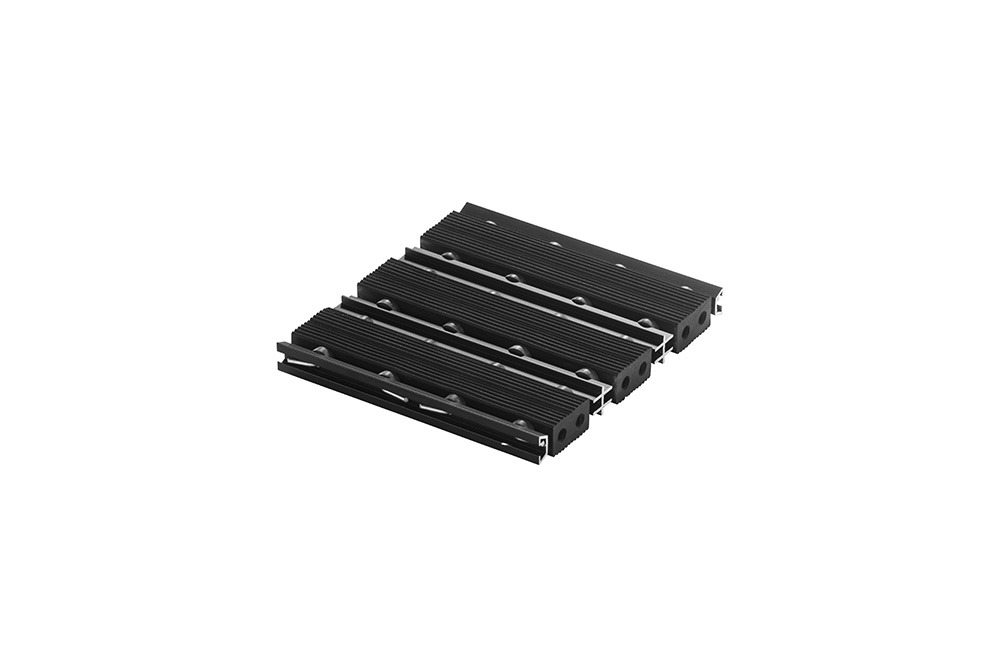

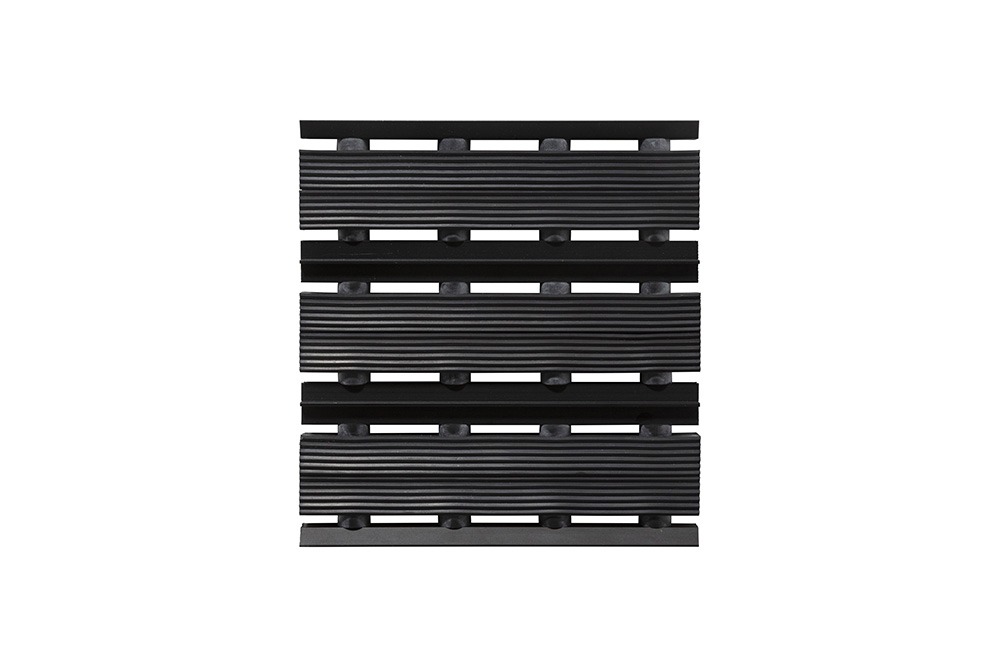

ABI Duplomat 18 Open

  • Suitable for zone 1, 2 and 3 (depends on insert)
  • Total mat height: 16 mm – with insert: 18 mm
  • Suitable for (heavy) rolling loads
  • Combinations possible: single, double or triple (new!)
  • Open construction

The ABI Duplomat is designed to handle heavy rolling loads, such as transport carts, shopping trolleys, pallet trucks and wheelchairs.



The ABI Duplomat 18 Open has a unique open construction that allows the dirt to fall through the gaps of the mat. As a result, the mat doesn't need to be cleaned that often as the majority of the dirt falls directly into the mat well. All Other Duplo mats have a closed construction, which means that the dirt remains &nbsp the mat.



Maximize the cleaning effect and combine with double or triple rubber!

SPECIFICATIONS



Aluminium height

16 mm

Aluminium width

16 mm

Aluminium thickness

1,5 mm

Insert material

EPDM rubber: EPDM rubber strips with ribbed structure

or

Buffed rubber: Vulcanized layered rubber strips

with pre-coloured textile (colourfast).

Inset material hight

18 mm

Insert material width

15 mm

Profile connection

Galvanized steel cable bracket 2.5 mm with distance cups

Standard aluminium

Brute

Optional aluminium

Anodization in 24 colours More information.

Optional inserts

Single, double or triple

Loadability

2.100 kg per 100 cm2

Fire load classification

Cfl-s1

Anti slip classification

R11

Weight

ca. 15 kg / m2

Total mat height

18 mm

INSERT OPTIONS


EPDM Rubber

Colour: Black

Buffed Rubber

Colors: Gray, black

Zebra (gray-black)

OPTIONAL ACCESSORIES

ANODIZATION

WELL FRAMES

T PROFILES
